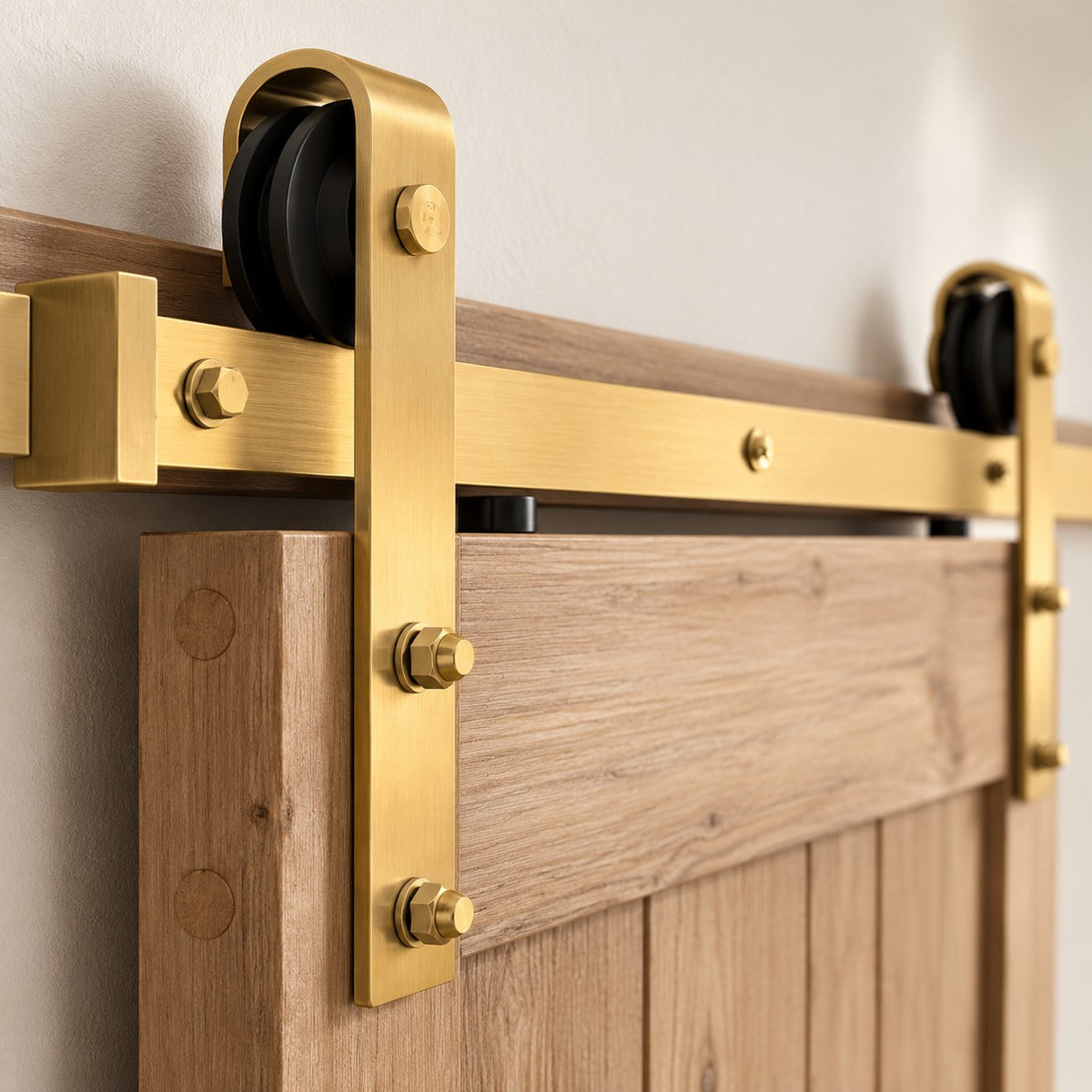

Close-up of a Dark Gold barn door hanger and black roller on an oak door

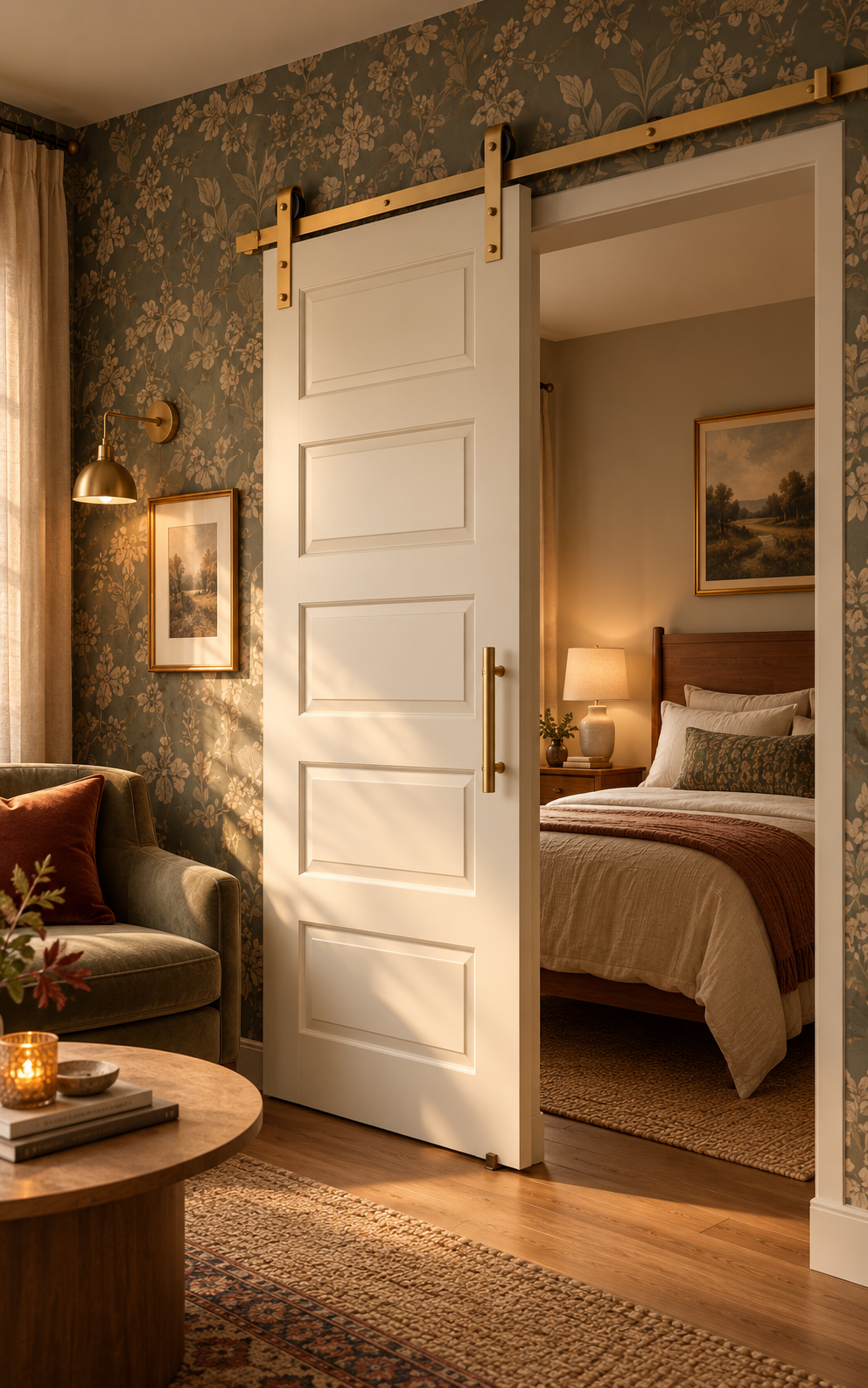

Dark Gold barn door hardware on a white five-panel sliding door in a living room with green floral wallpaper, opening to a bedroom

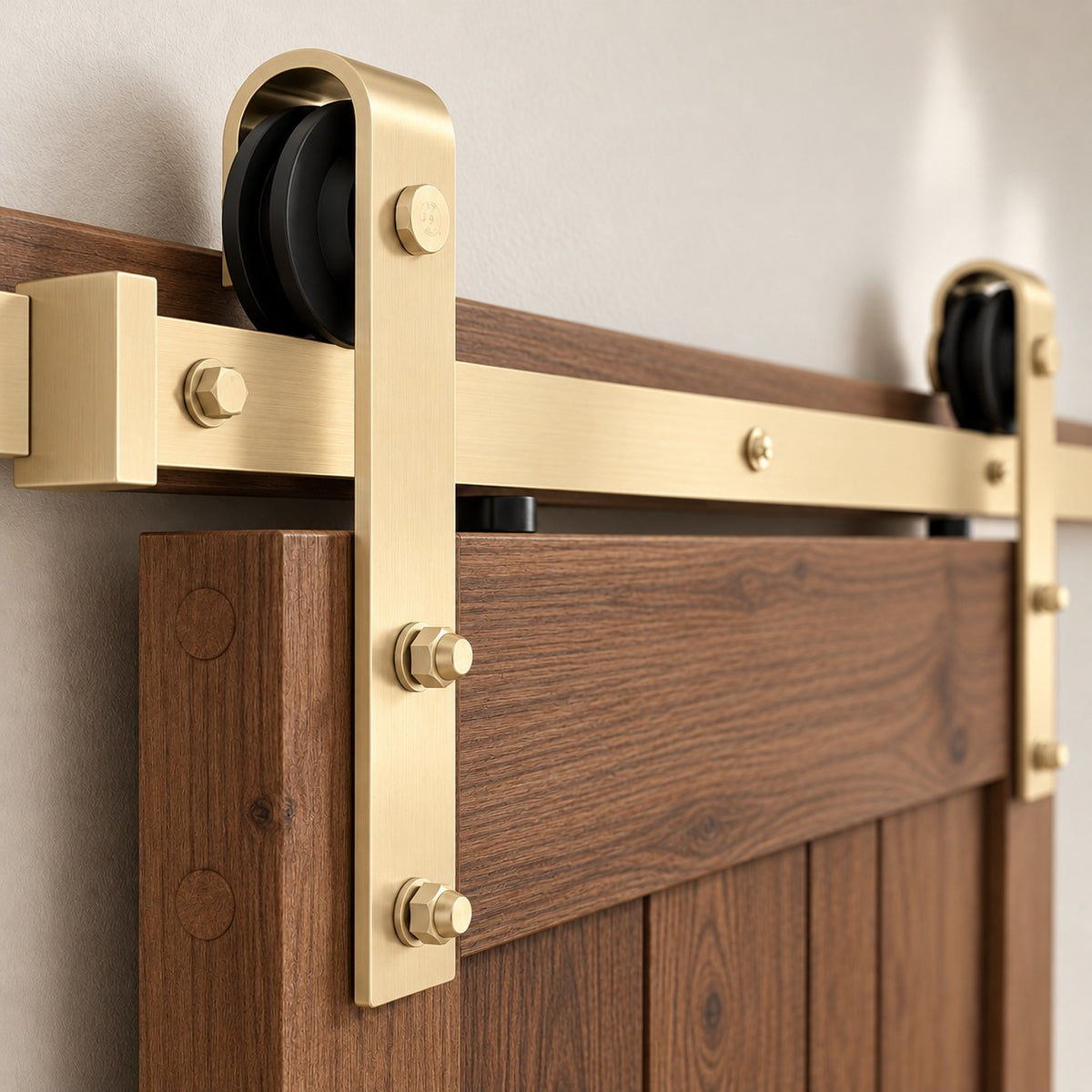

Close-up of a Light Gold barn door hanger and black roller on the rail, mounted on a dark wood door

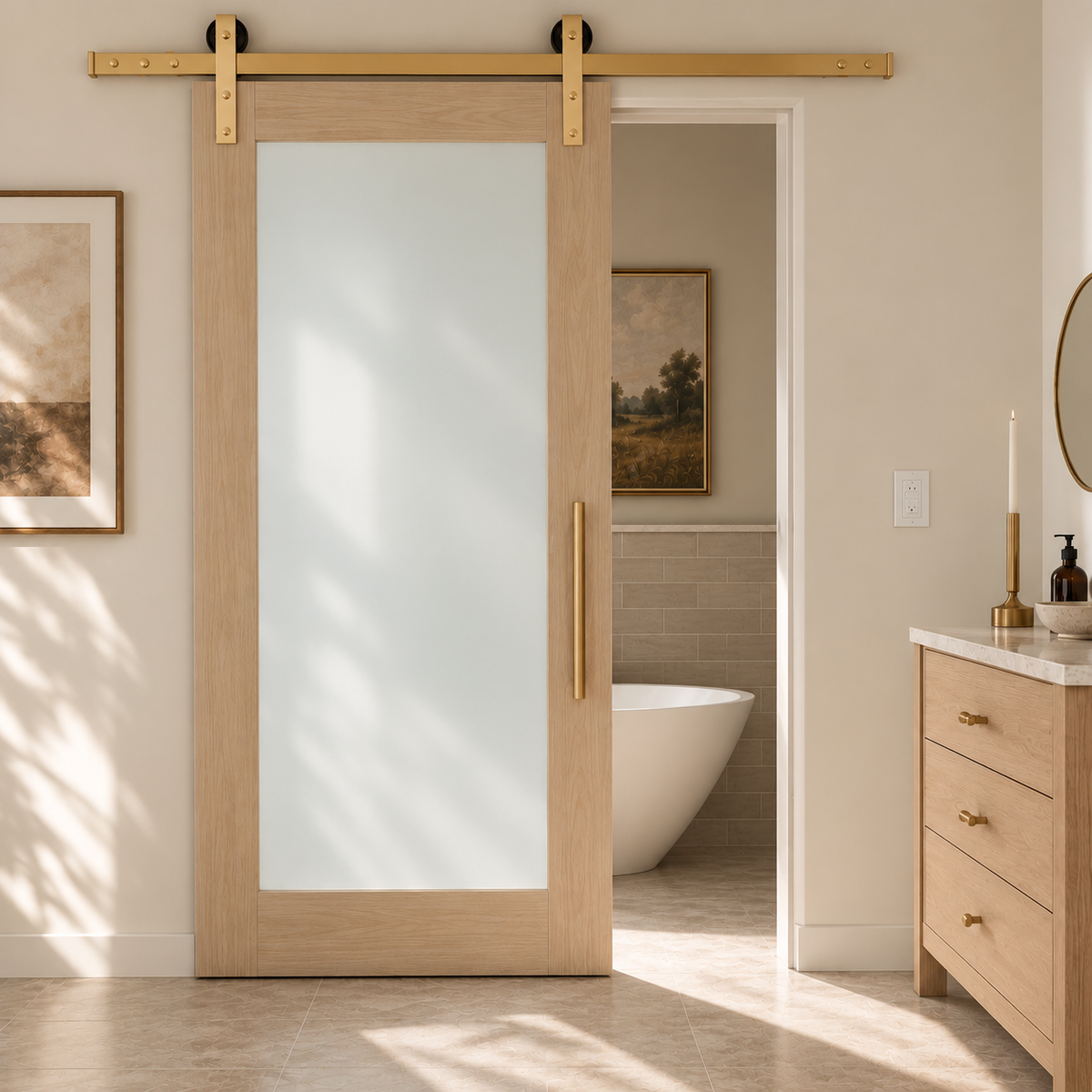

Light Gold sliding barn door hardware on a frosted glass oak door in a bright bathroom

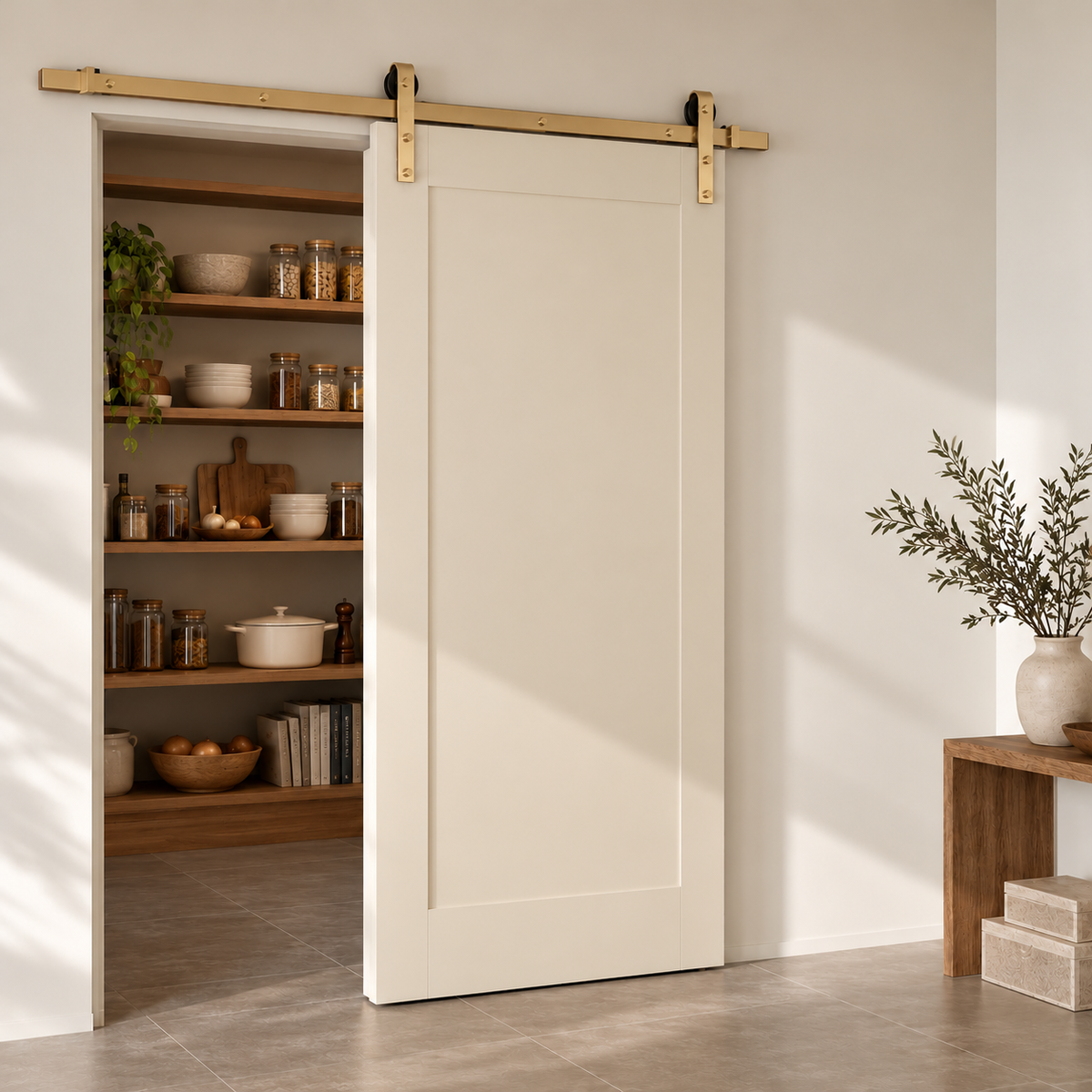

Light Gold barn door hardware on a white shaker sliding door opening to a pantry

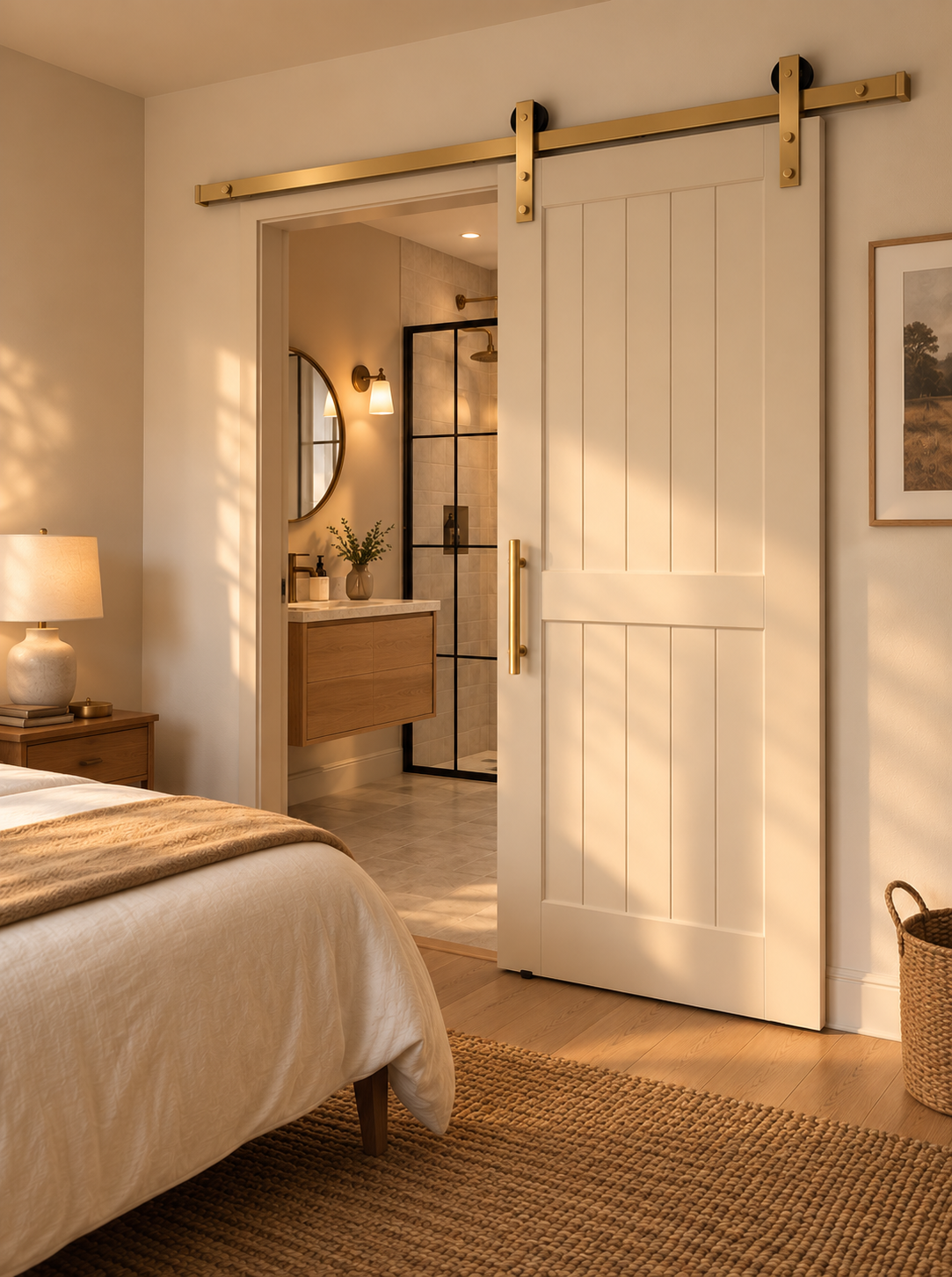

Light Gold barn door hardware on a white plank sliding door between a bedroom and ensuite
Dark Gold and Light Gold barn door hangers side by side on a dark wood door, Dark Gold shown as the finish you are viewing

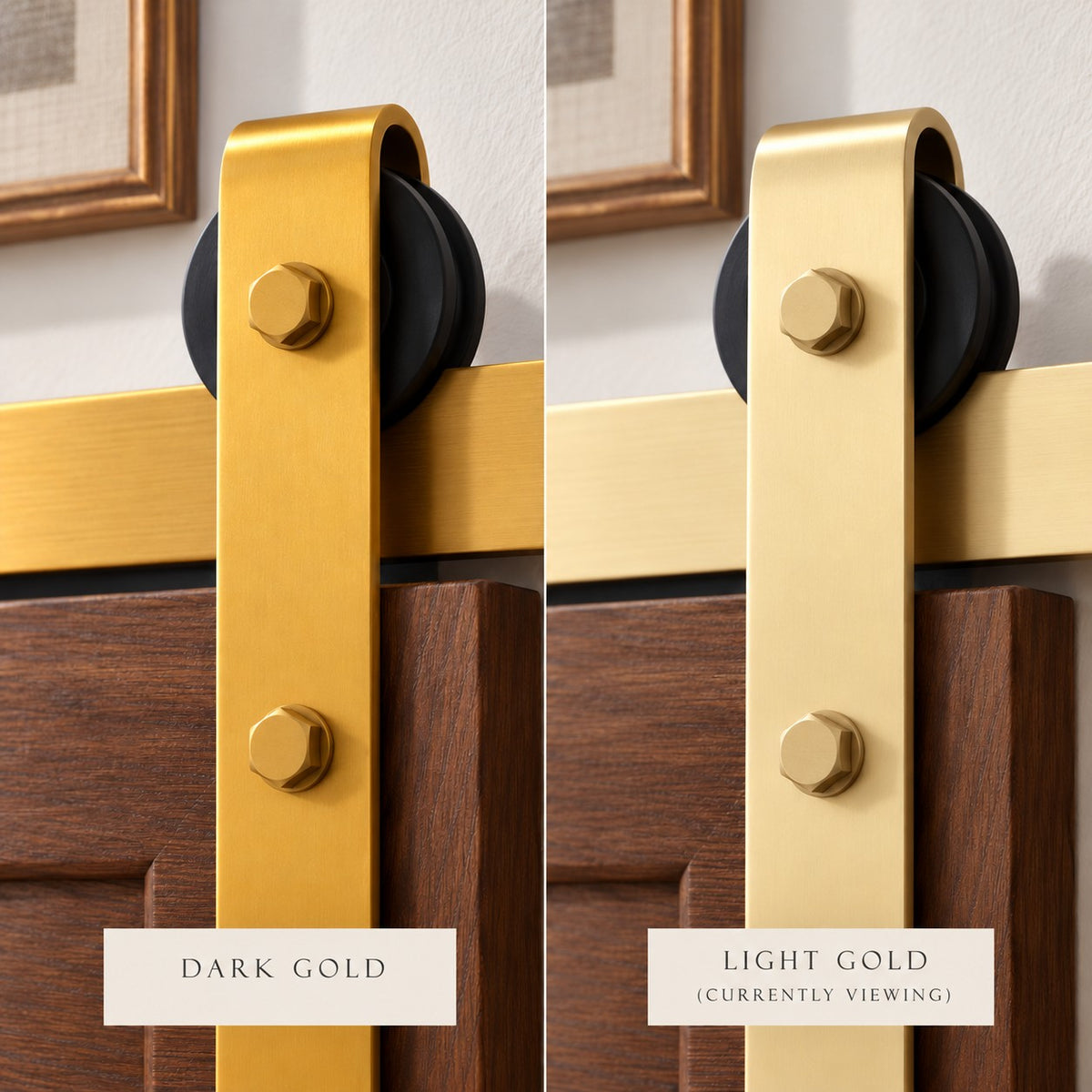

Dark Gold and Light Gold barn door hangers side by side on a dark wood door, Light Gold shown as the finish you are viewing

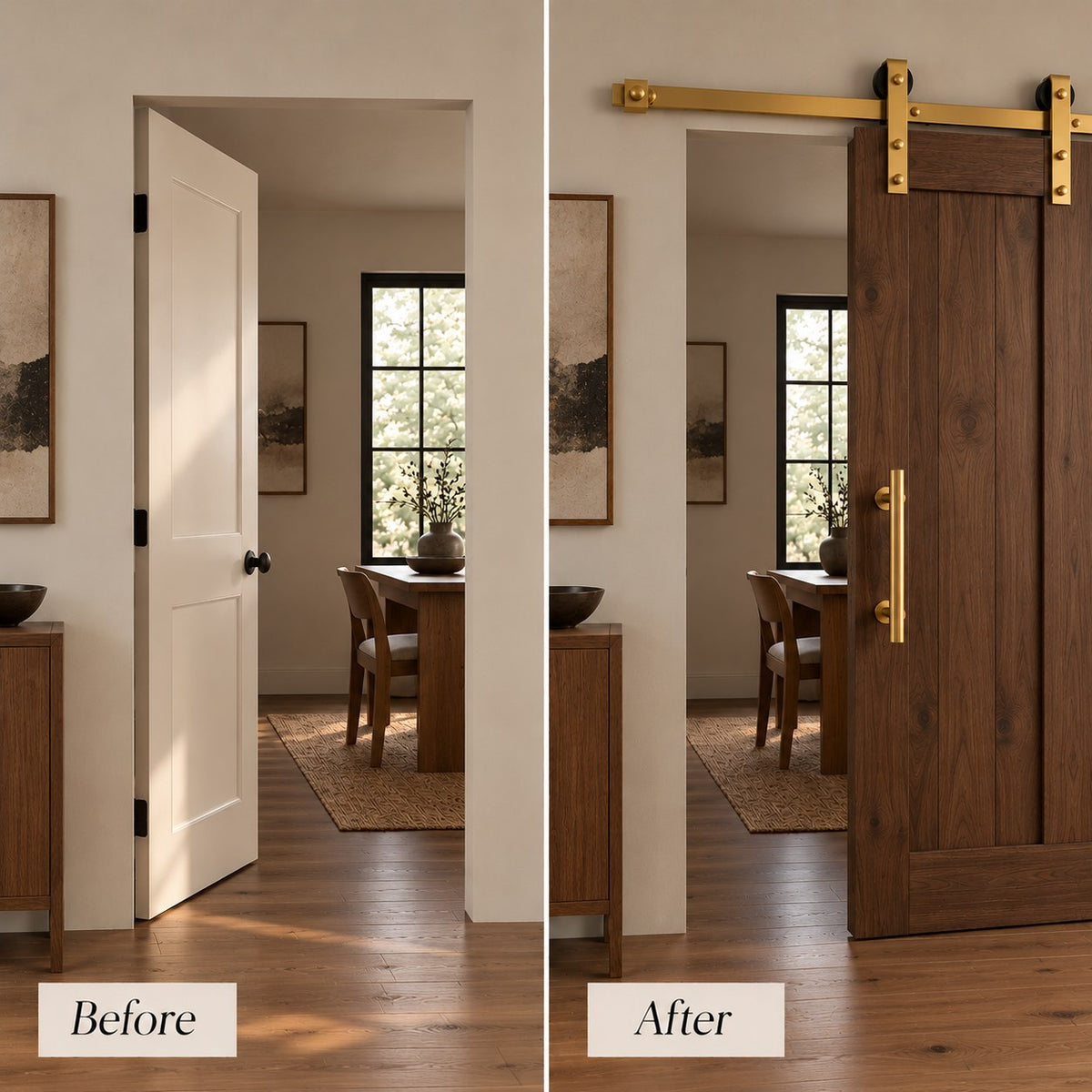

Before and after: a standard hinged door replaced by a sliding barn door with Dark Gold barn door hardware and handle

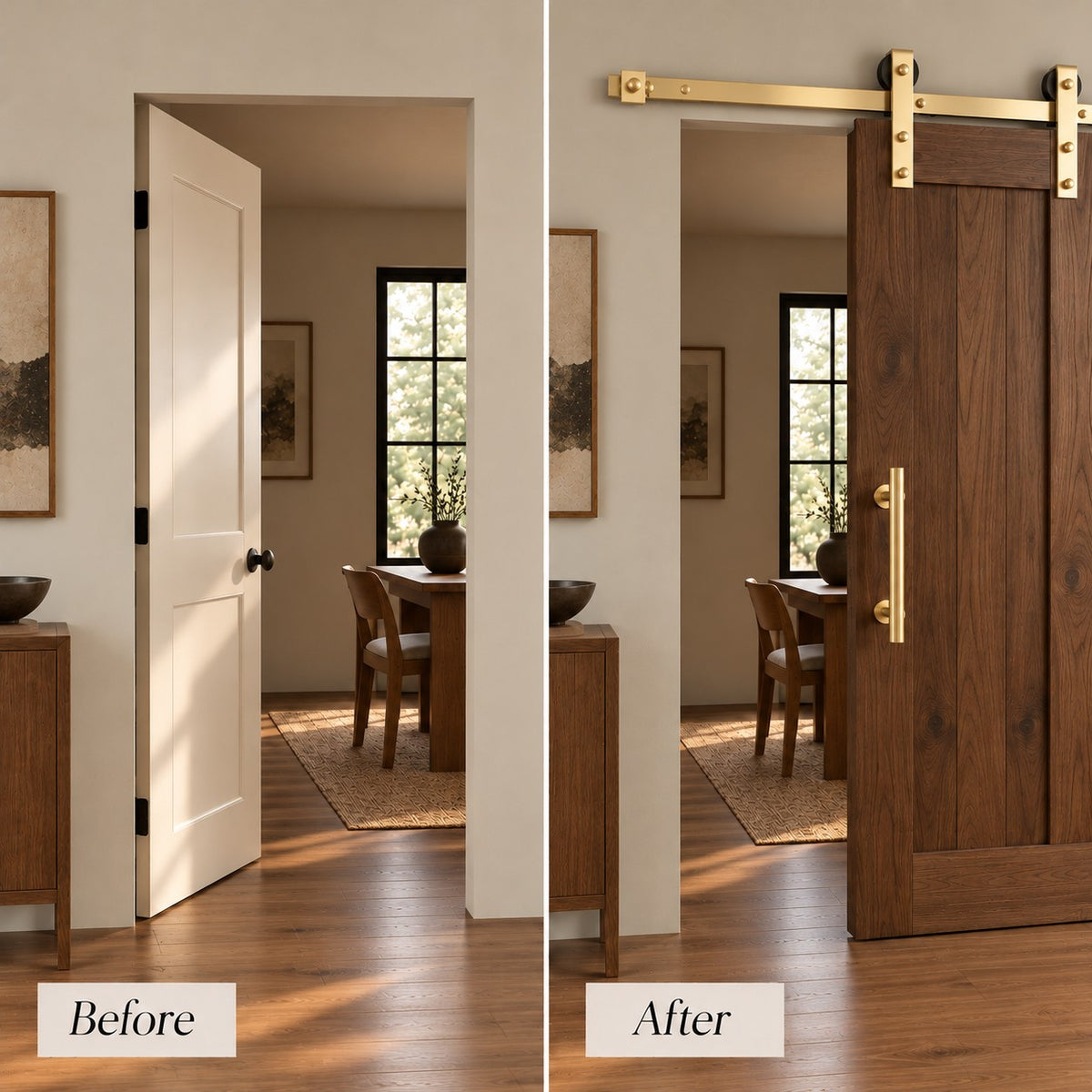

Before and after: a hinged doorway replaced by a dark wood sliding barn door on a Light Gold rail with a gold pull handle

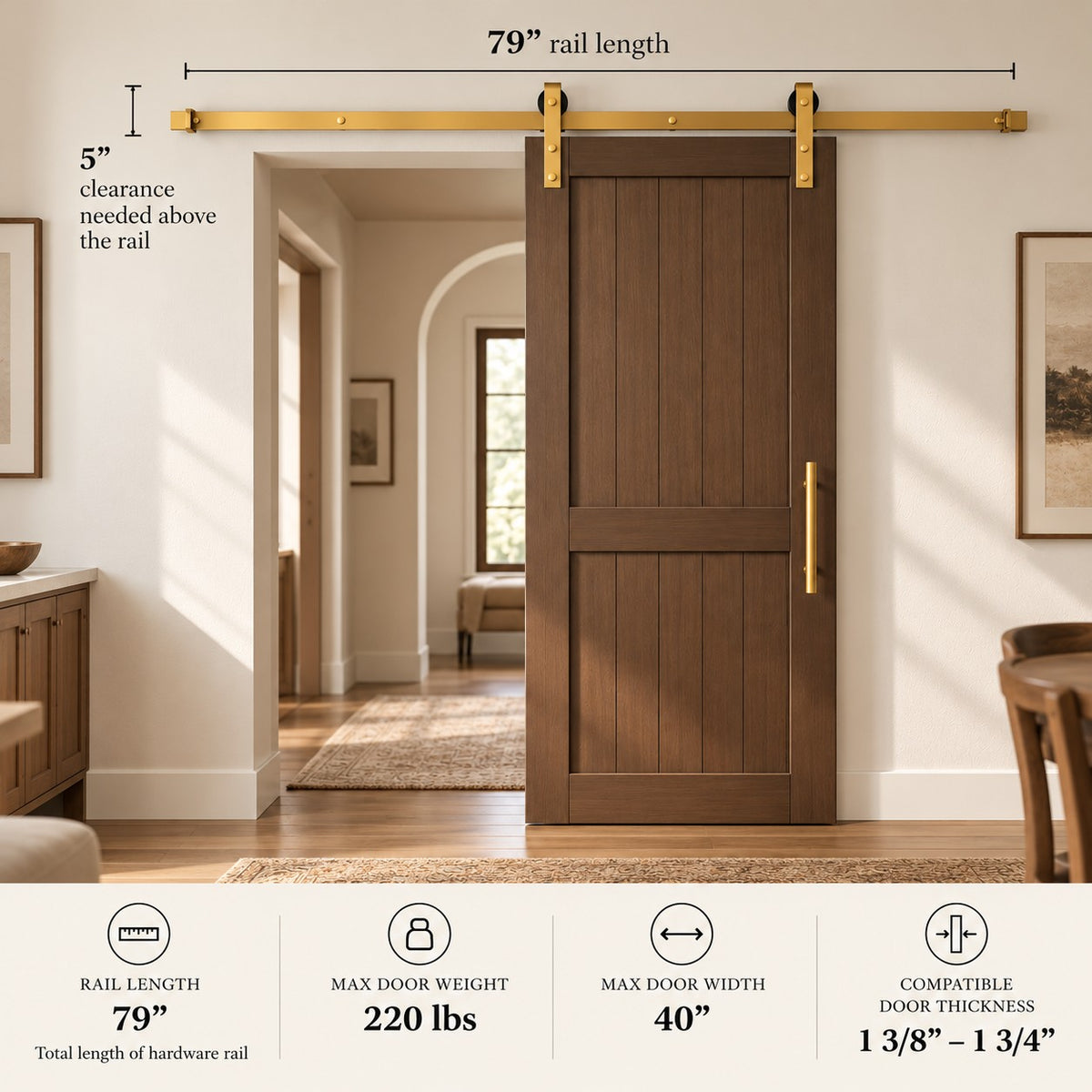

Dark Gold barn door hardware kit on a walnut door with rail length, max door weight, door width and door thickness callouts

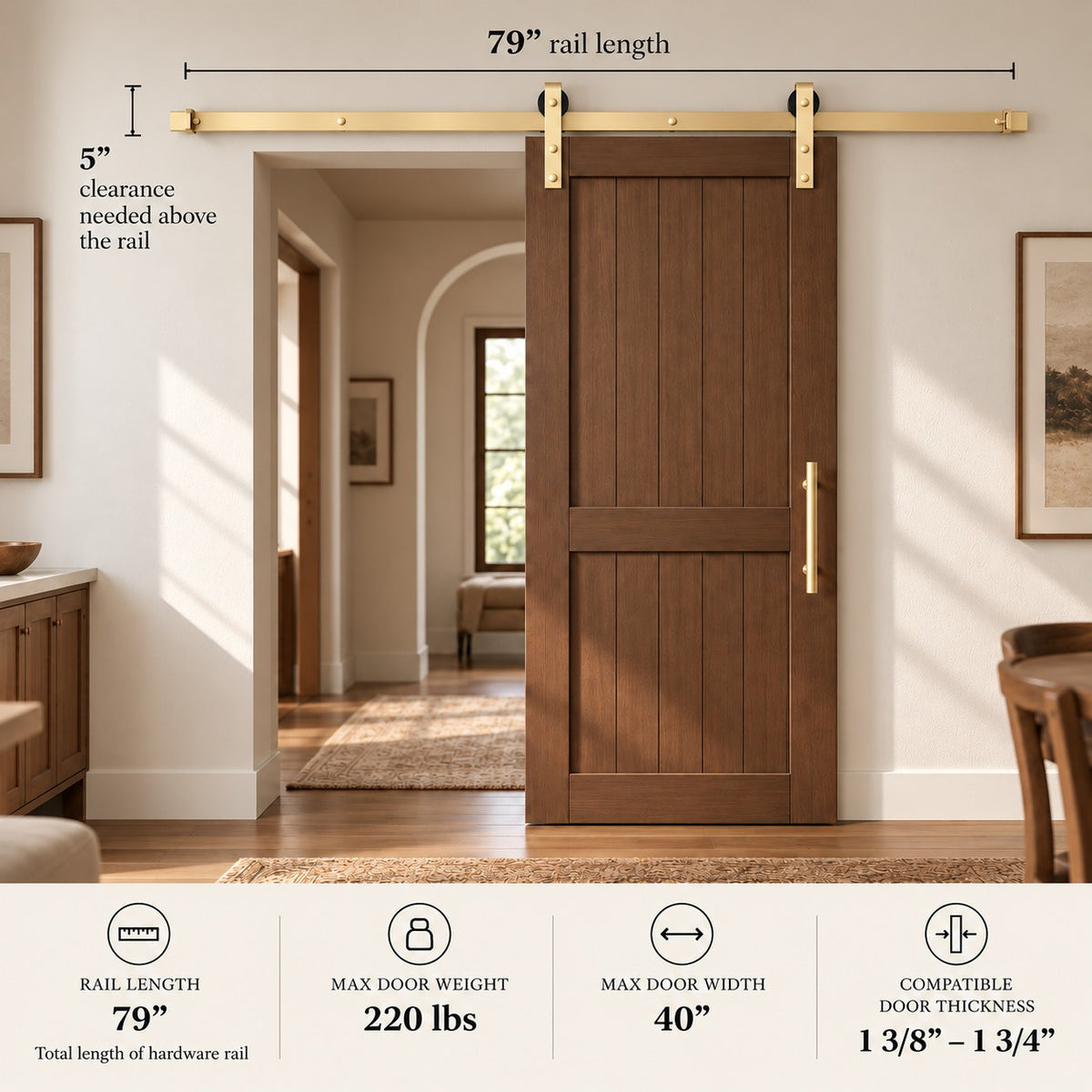

Light Gold 79 inch barn door rail measurements: 5 inch clearance above the rail, 220 lb max door weight, 40 inch max door width, 1 3/8 to 1 3/4 inch door thickness

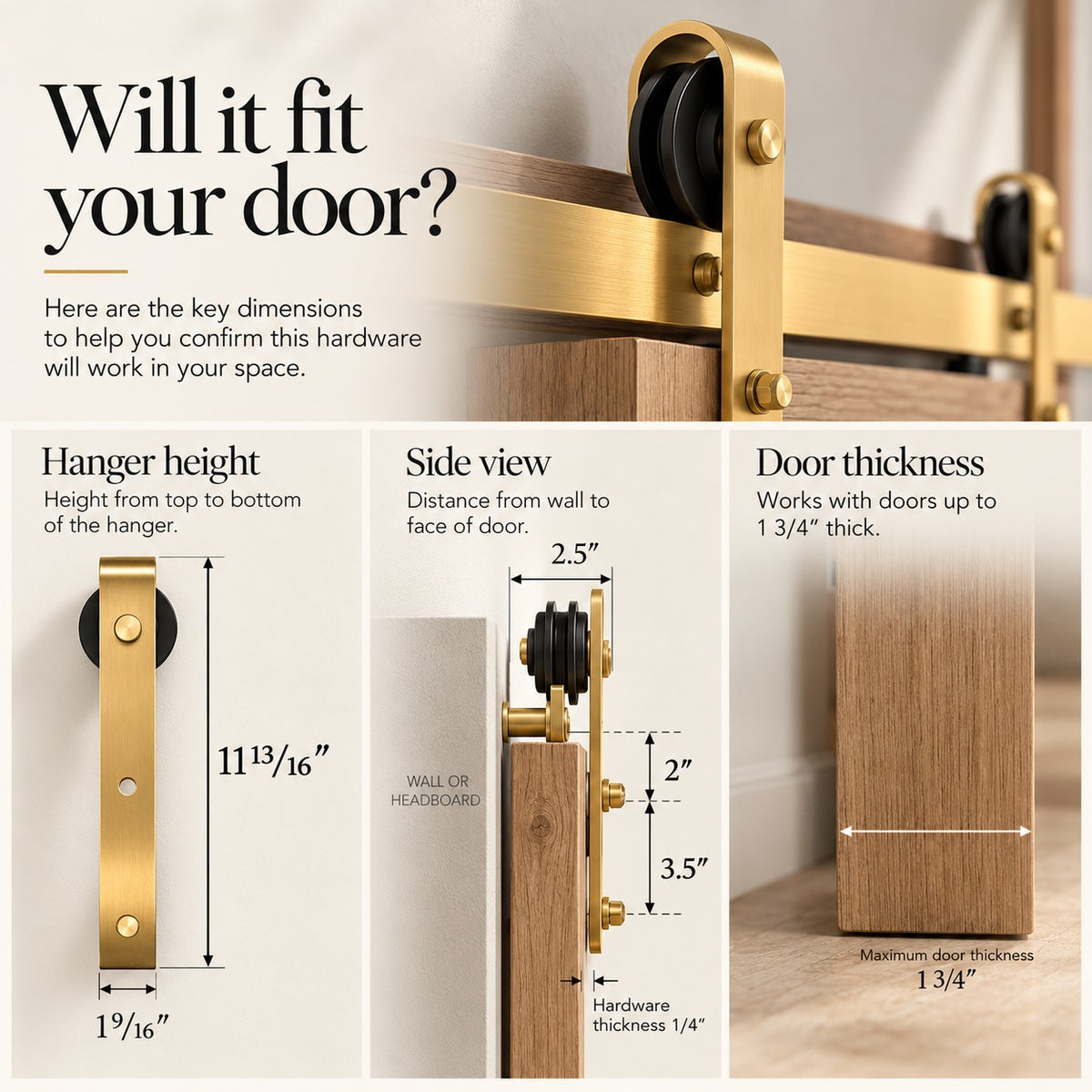

Will it fit your door? Dark Gold barn door hanger height, side view and door thickness dimensions

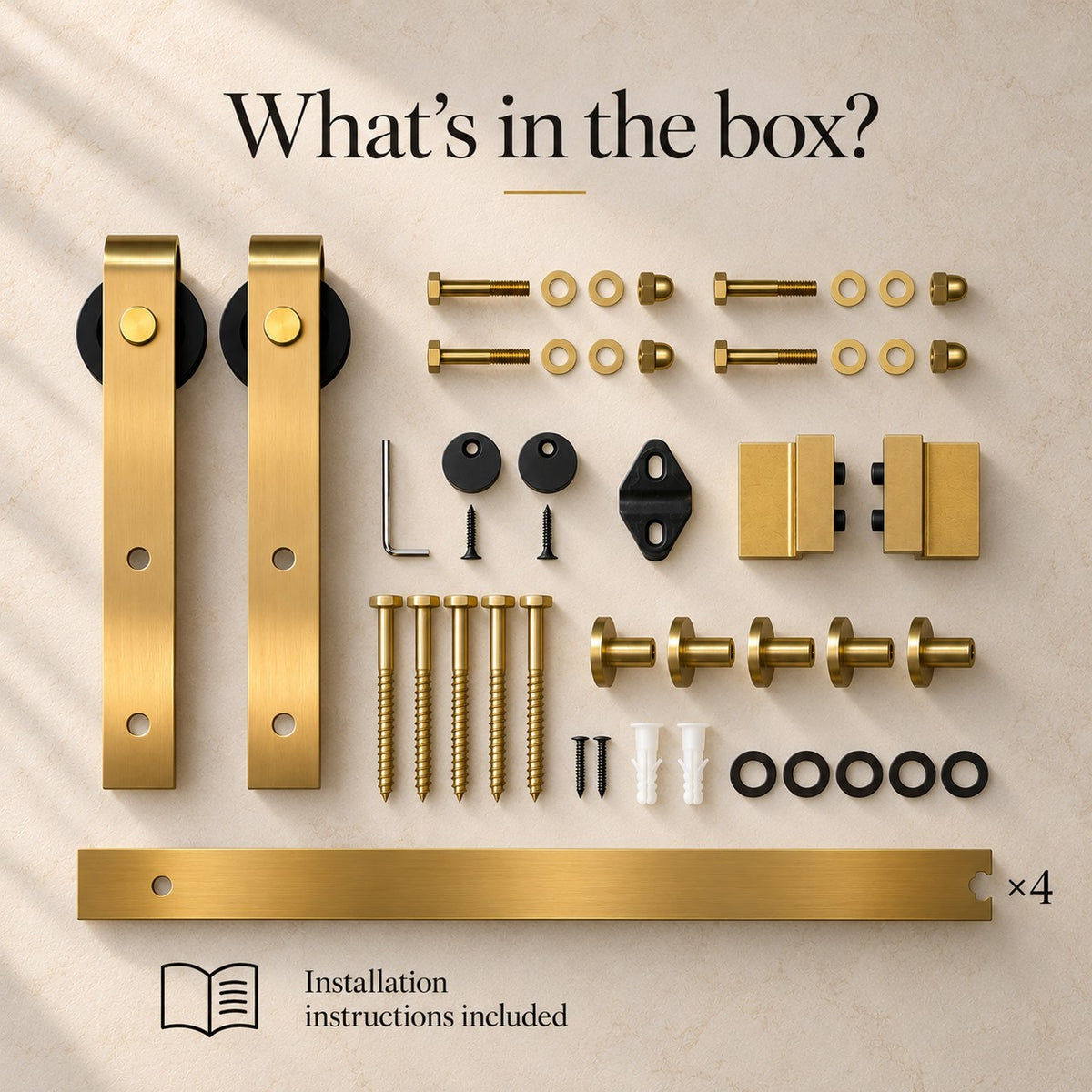

What is in the box: Dark Gold barn door track kit hardware laid flat

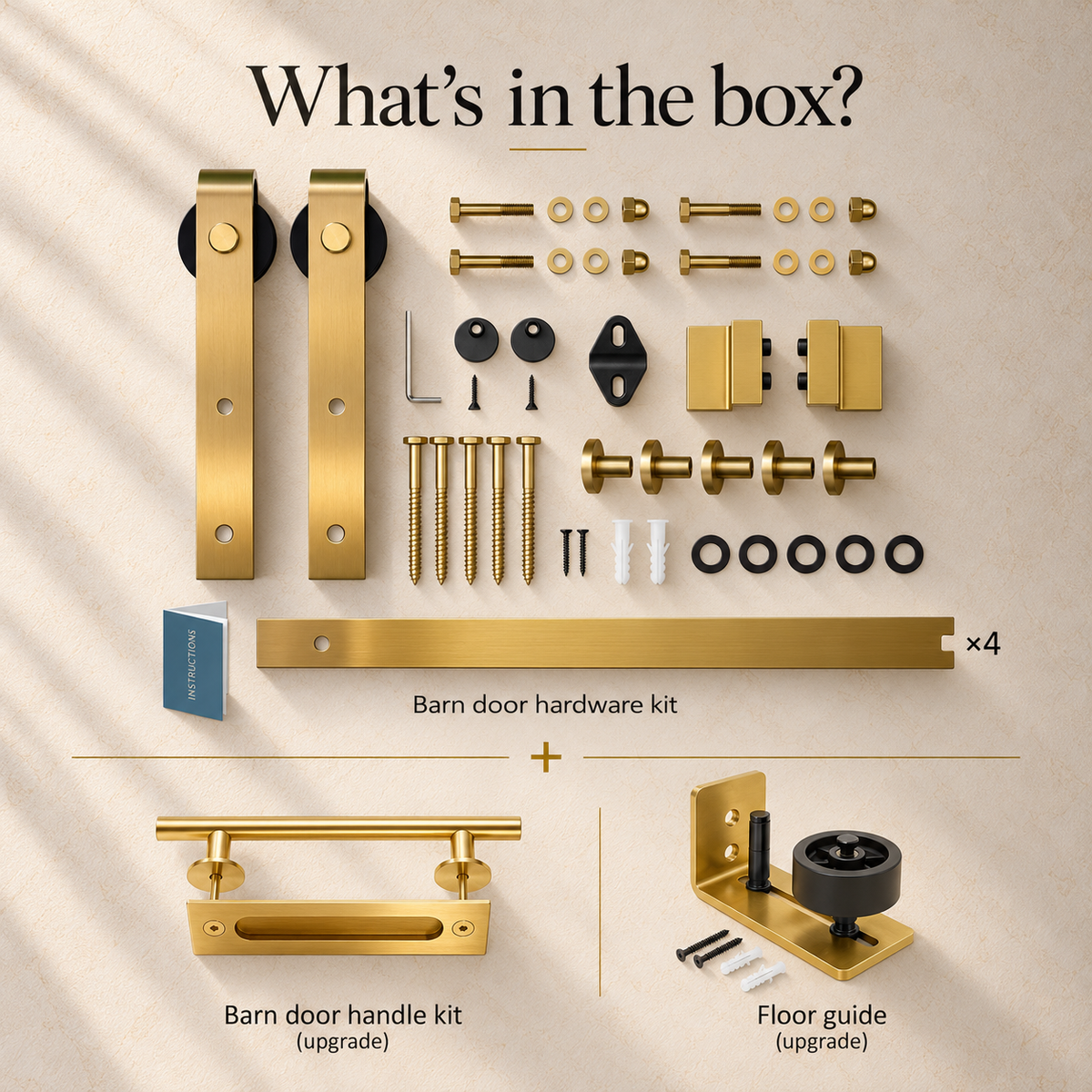

What's in the box for the Dark Gold Track Kit + Handle & Floor Guide: brushed gold track in 4 pieces, hangers, rollers, stoppers, handle kit and floor guide

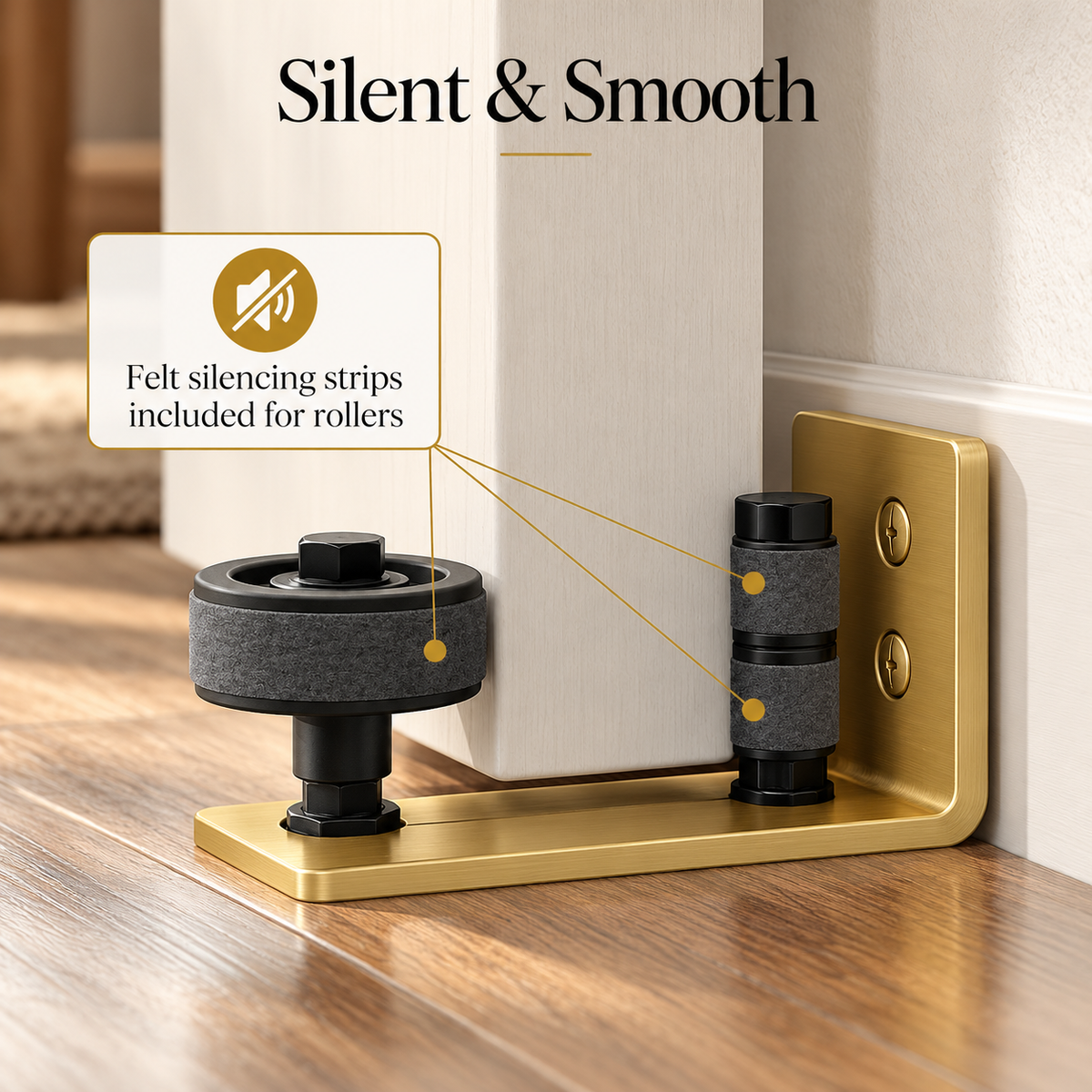

Silent and smooth: gold barn door floor guide with felt silencing strips included for the rollers

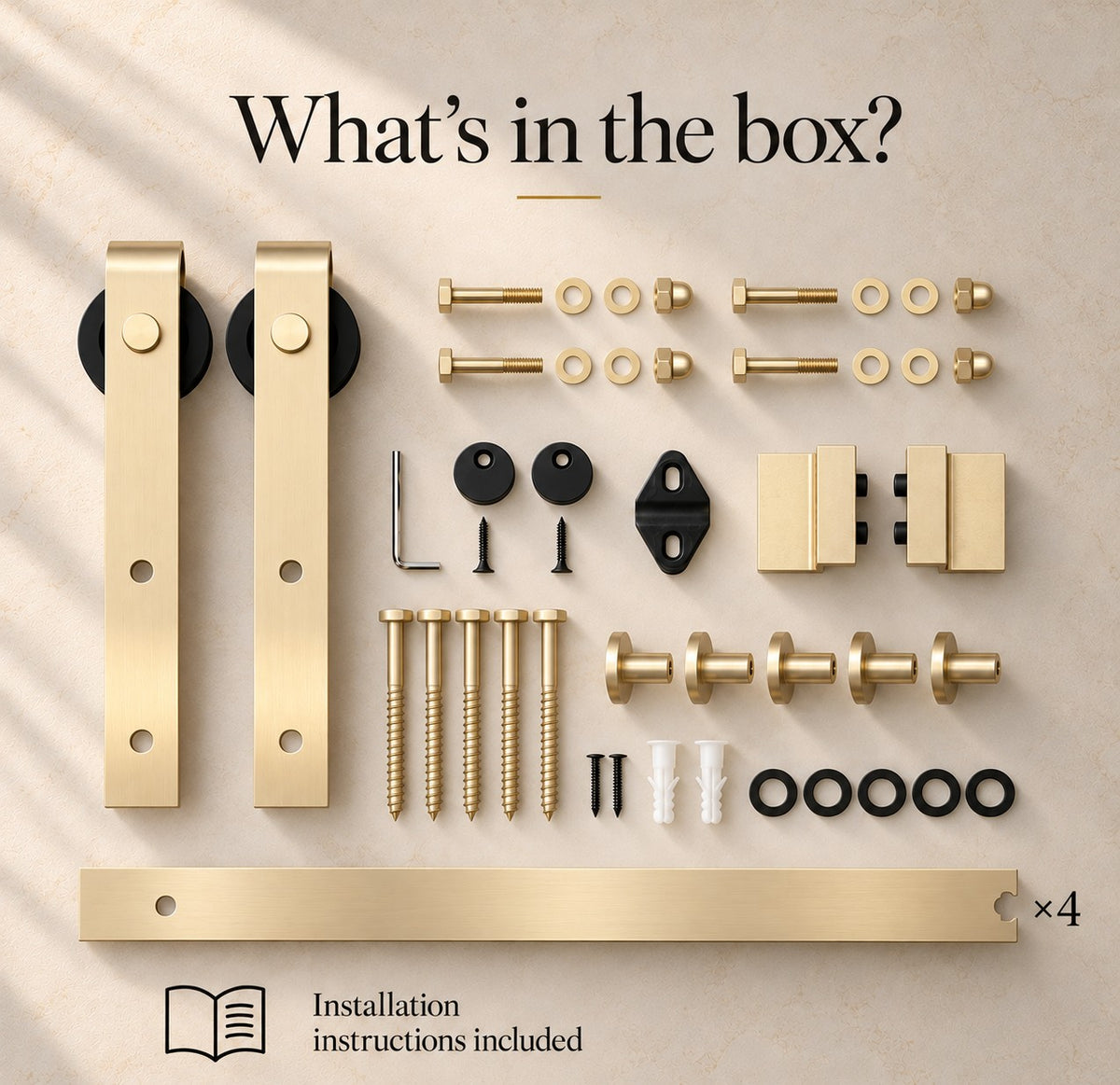

What is in the box for the Light Gold Track Kit Only: 2 hangers, rail in 4 pieces, mounting hardware, stoppers and instructions

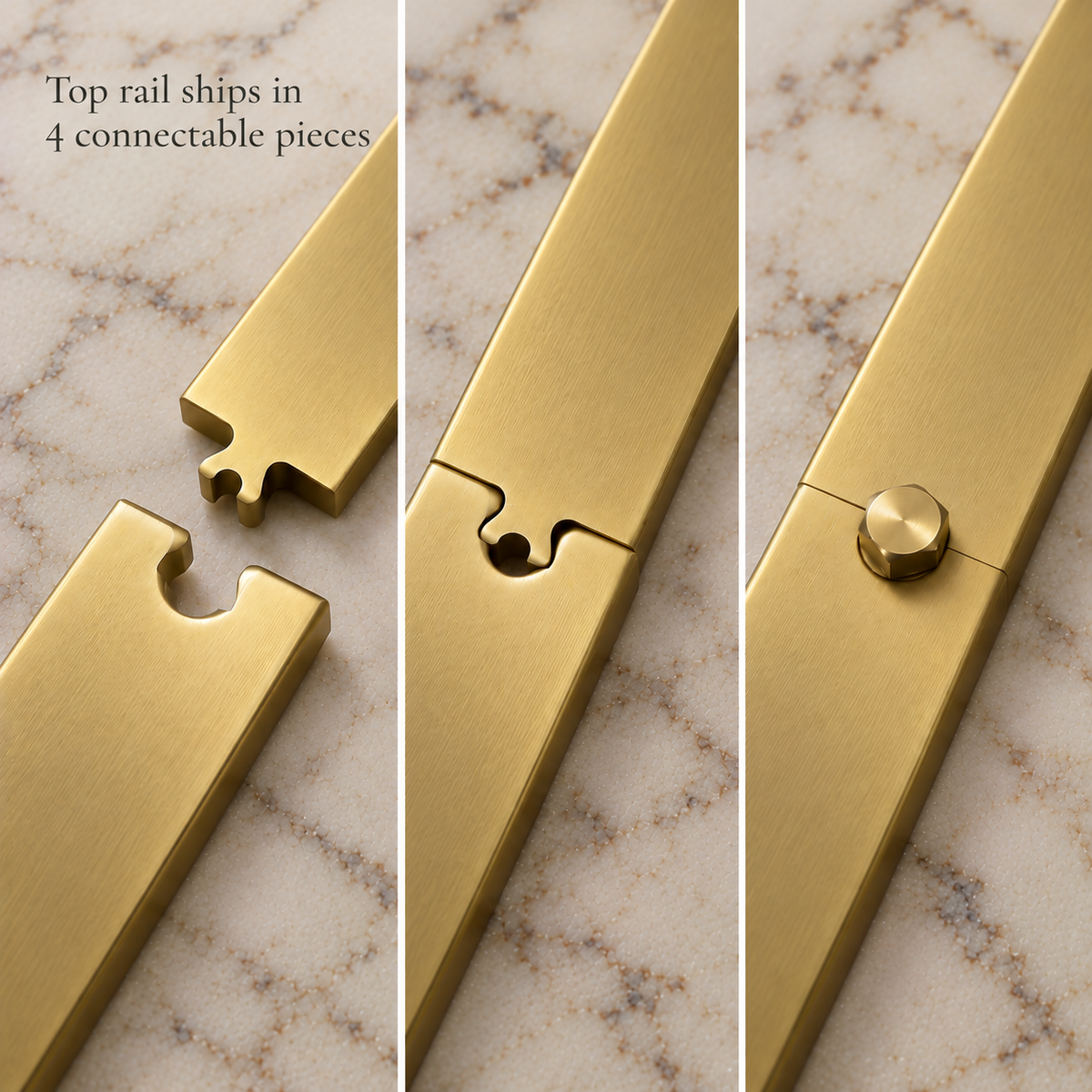

Brushed gold barn door track in 4 connectable pieces with puzzle joints and connector screw

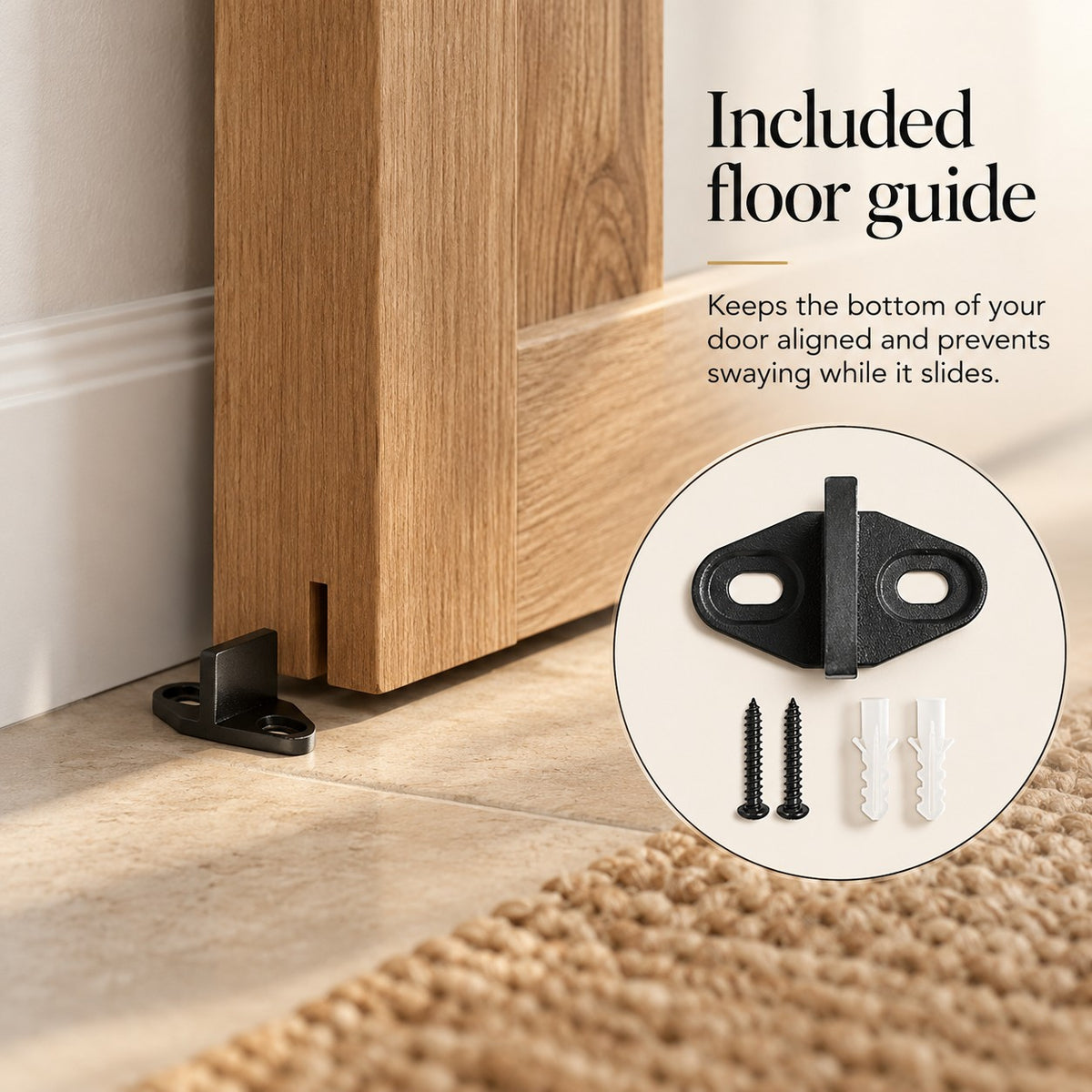

Included black floor guide keeps the bottom of a barn door aligned as it slides

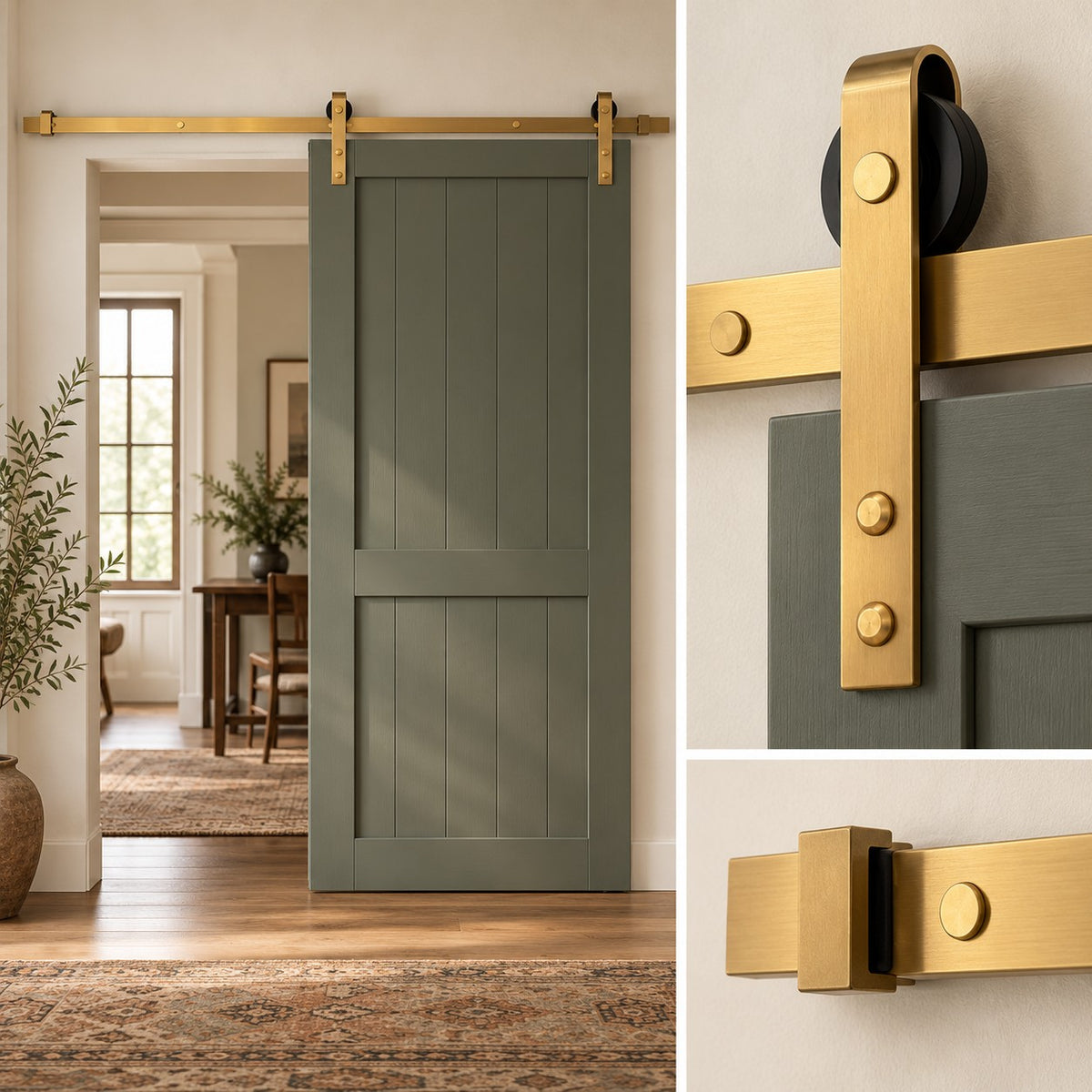

Dark Gold barn door hardware kit on a sage green sliding door, with close-ups of the hanger and stopper

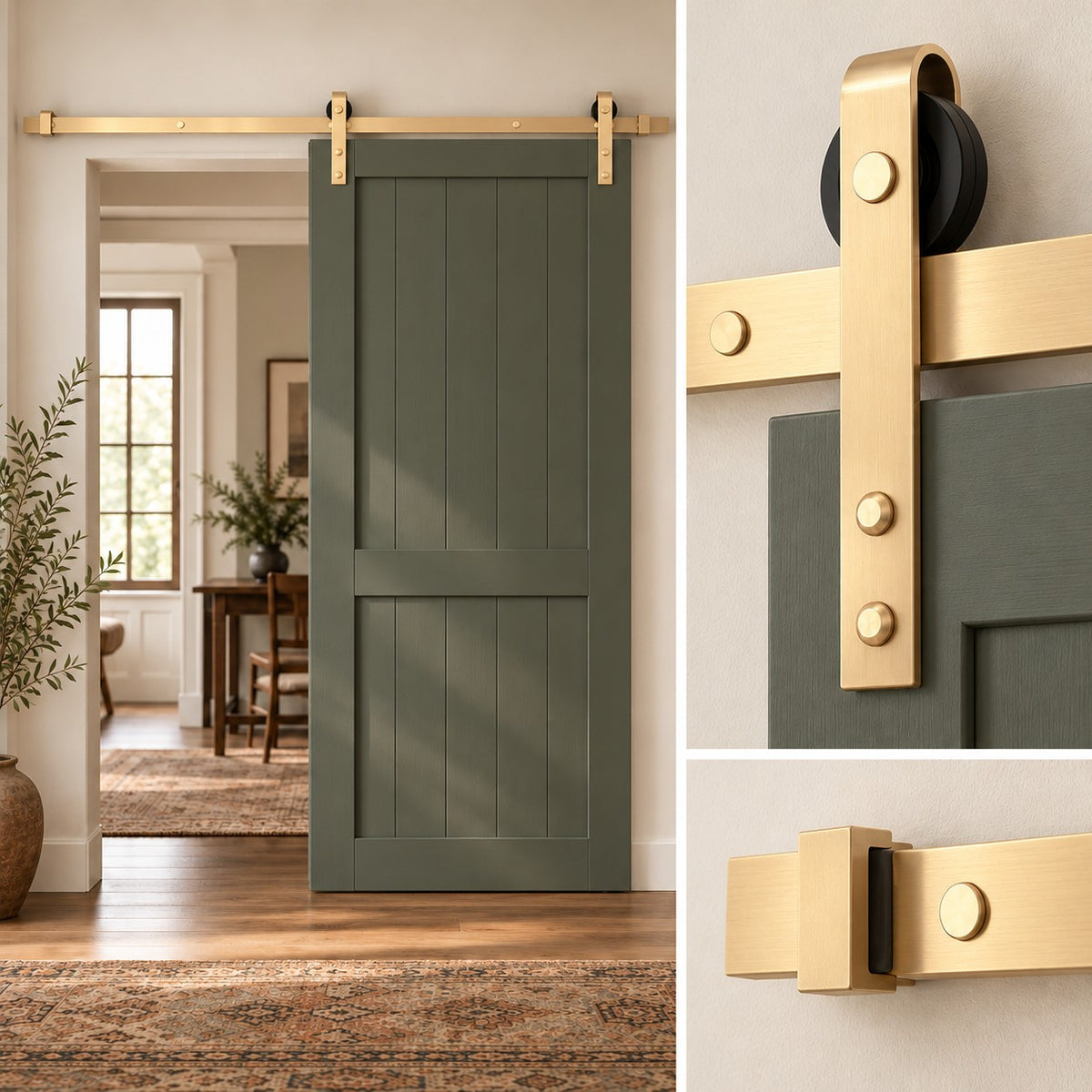

Sage green barn door on a Light Gold rail, with close-ups of the Light Gold hanger and stopper
Close-up of a Dark Gold barn door hanger and black roller on an oak door
Dark Gold barn door hardware on a white five-panel sliding door in a living room with green floral wallpaper, opening to a bedroom
Close-up of a Light Gold barn door hanger and black roller on the rail, mounted on a dark wood door
Light Gold sliding barn door hardware on a frosted glass oak door in a bright bathroom
Light Gold barn door hardware on a white shaker sliding door opening to a pantry
Light Gold barn door hardware on a white plank sliding door between a bedroom and ensuite
Dark Gold and Light Gold barn door hangers side by side on a dark wood door, Dark Gold shown as the finish you are viewing
Dark Gold and Light Gold barn door hangers side by side on a dark wood door, Light Gold shown as the finish you are viewing
Before and after: a standard hinged door replaced by a sliding barn door with Dark Gold barn door hardware and handle
Before and after: a hinged doorway replaced by a dark wood sliding barn door on a Light Gold rail with a gold pull handle
Dark Gold barn door hardware kit on a walnut door with rail length, max door weight, door width and door thickness callouts
Light Gold 79 inch barn door rail measurements: 5 inch clearance above the rail, 220 lb max door weight, 40 inch max door width, 1 3/8 to 1 3/4 inch door thickness
Will it fit your door? Dark Gold barn door hanger height, side view and door thickness dimensions
What is in the box: Dark Gold barn door track kit hardware laid flat
What's in the box for the Dark Gold Track Kit + Handle & Floor Guide: brushed gold track in 4 pieces, hangers, rollers, stoppers, handle kit and floor guide
Silent and smooth: gold barn door floor guide with felt silencing strips included for the rollers
What is in the box for the Light Gold Track Kit Only: 2 hangers, rail in 4 pieces, mounting hardware, stoppers and instructions
Brushed gold barn door track in 4 connectable pieces with puzzle joints and connector screw
Included black floor guide keeps the bottom of a barn door aligned as it slides
Dark Gold barn door hardware kit on a sage green sliding door, with close-ups of the hanger and stopper
Sage green barn door on a Light Gold rail, with close-ups of the Light Gold hanger and stopper

Barn Door Hardware Kit | Single Door | Gold

$179.99
Color Dark Gold
Size 6ft 7in

Size Guide
Kit Track Kit + Handle & Floor Guide

Hardware only. Door not included. Doors in photos are shown for styling.
Free Shipping On All Barn Door Hardware

Dark Gold: Bright, sunlit gold with a polished, classic glow. Compare finishes in photo 03.

Will This Work With My Door?
Configuration
Single door, single track. Bypass (two doors that slide past each other) is a different kit.
Door Thickness
1 3/8" or 1 3/4"
Material
Solid, heavyweight metal, never hollow. Brushed gold finish.
Track
Ships in 4 sections that join seamlessly with the included connector screws, for a smooth, secure glide.
Max Door Weight
220 lb
Door Width
Fits doors up to 40" wide on the 6ft 7in track
Trim And Molding
If your doorway has trim, mount the track on a header board as thick as the trim.
What Track Length Do I Need?

Measure your door opening. Your door should be a little wider than the opening so it covers it, and the track is usually about twice the door width so the door can slide fully clear. Make sure you have that much open wall beside the opening.

This kit: 6ft 7in (78.75") track, for doors up to 40" wide. The door is about half the track length. Other single sizes run 5ft to 9ft. Not every size comes in both finishes.

See image 03 and How To Measure.

What's Included?

Track Kit Only: solid metal track (4 track sections + connector screws), rollers and all mounting hardware for one door on one track, plus step-by-step instructions. No handle or floor guide.

Track Kit + Handle & Floor Guide: everything in Track Kit Only, plus:

  • 12" x 1" pull handle bar
  • 8.5" x 2.3" flush finger pull
  • 2 matching gold screws, 2 3/8"
  • 2 protective round pads, 1 3/4"
  • 1 wrench
  • 1 adjustable floor guide: mounts to the wall, 8 assembly options, no groove in the door and no drilling into the floor

Hardware only. The door is not included.

How Much Clearance Do I Need?
Above The Opening
At least 5" between the ceiling and the top of the rail
Can I Install It Myself?

Yes, it is designed for DIY. Step-by-step instructions and all mounting hardware are included. For indoor use only. The floor guide mounts to the wall, so there is no groove to cut in the door and no drilling into the floor.

Studs Or Drywall
Screw the track into wall studs.
Header Board
Use a header board if the track holes don't line up with your studs or if your doorway has trim. Match the board to the trim thickness and screw it into the studs.

How To Measure

STEP 1Measure the width of your door opening.
STEP 2Your door should overlap the opening on both sides.
STEP 3Choose a track about twice your door width. The 6ft 7in track fits doors up to 40" wide.
STEP 4Check the space above the opening for the track and rollers. You need at least 5" between the ceiling and the top of the rail.

Single, Double Or Bypass

This Kit

Single Door Or Double Door

"Single" sizes hang one door on one track. The Double Door Kit (6ft, 8ft 2in, 12ft or 13ft) hangs two doors on one track that meet in the middle.
Different Kit

Bypass

Two doors on two parallel tracks that slide past each other, for wide closets. Sold separately.

Questions About This Kit

What size track do I need?

Choose a track about twice your door width so the door can slide fully clear of the opening, and make sure there is that much open wall beside it. The 6ft 7in (78.75") track fits doors up to 40" wide.

How thick can my door be?

1 3/8" or 1 3/4".

How much room do I need above the door?

At least 5" between the ceiling and the top of the rail. If the doorway has trim, mount the track on a header board as thick as the trim.

How much weight can it hold?

Up to 220 lb.

What's included?

Track Kit Only: the track, two hangers with rollers, door stops, all mounting hardware and step-by-step instructions. Track Kit + Handle & Floor Guide adds a 12" x 1" pull bar, an 8.5" x 2.3" flush finger pull with screws, pads and a wrench, and a wall-mounted floor guide. The door is not included.

Can I install it myself?

Yes. Step-by-step instructions and all mounting hardware are included. The track sections join seamlessly with the included connector screws. Screw the track into wall studs, or into a header board screwed into the studs. The floor guide mounts to the wall, so there is no groove in the door and no drilling into the floor.

What is it made of?

Solid, heavyweight metal, never hollow, with a brushed gold finish. For indoor use only.

Does it close quietly and smoothly?

The rollers are built to glide quietly along the track. Soft close:
