Barn Door Hardware Kit | Double Door | Gold
Hardware only. Door not included. Doors in photos are shown for styling.
Dark Gold: Bright, sunlit gold with a polished, classic glow. Compare finishes in photo 01.
Light Gold: A softer, champagne-toned gold. Compare finishes in photo 03.
Will This Work With My Doors?
- Configuration
- Two doors on one track that meet in the middle. Bypass (two doors that slide past each other) is a different kit.
- Door Thickness
- 1 3/8" to 1 3/4"
- Material
- Solid, heavyweight metal, never hollow. Brushed gold finish.
- Track
- 6ft (72"), 8ft 2in (98"), 12ft (144") or 13ft (156") track. The 6ft track ships in 4 pieces (other sizes: [Molly to confirm]), joined seamlessly with the included connector screws, for a smooth, secure glide.
- Max Door Weight
- Up to 220 lb
- Door Width
- Each door up to [Molly to confirm]
- Trim And Molding
- If your doorway has trim, mount the track on a header board as thick as the trim.

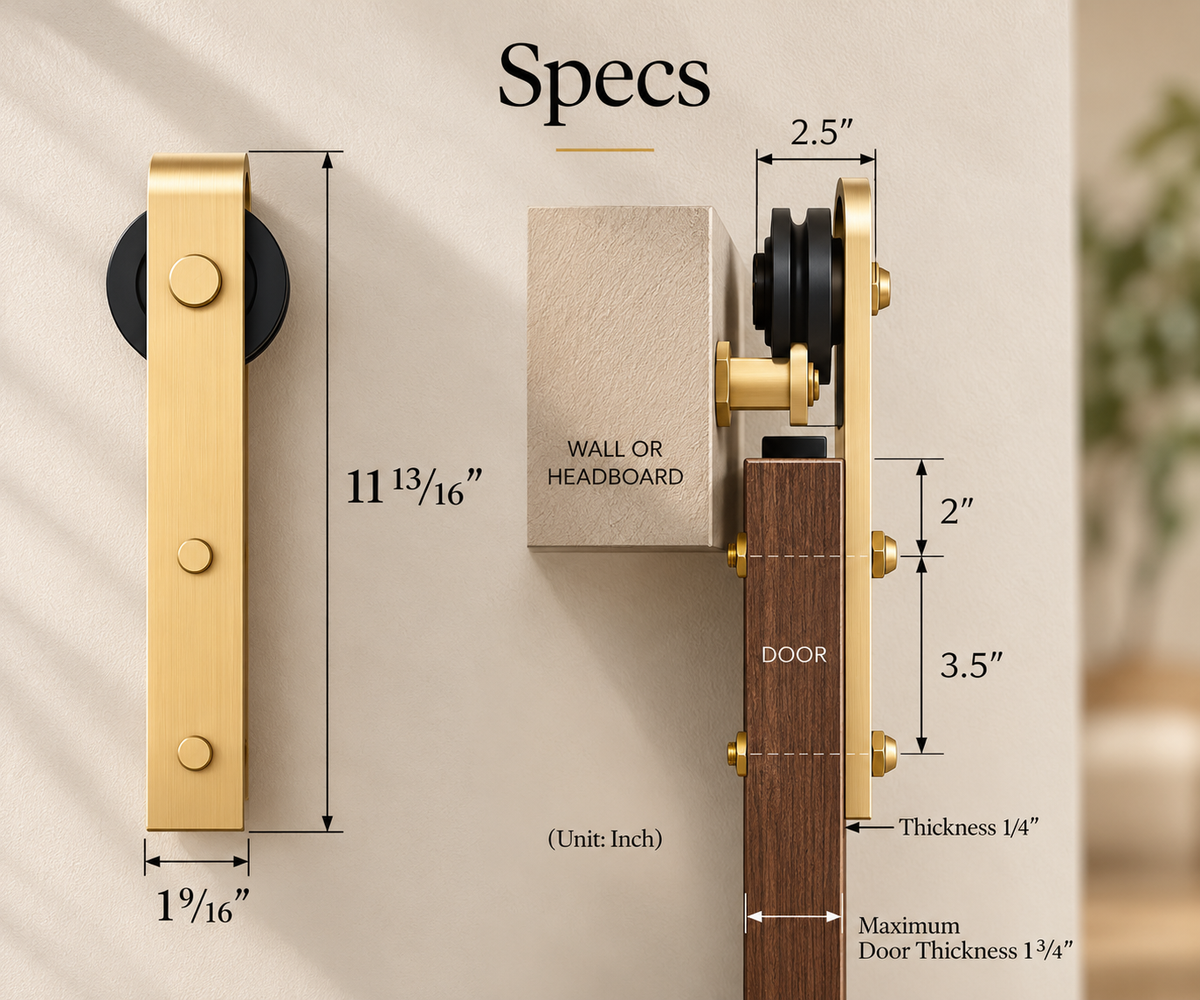

Hanger Specs
- Hanger Size
- 11 13/16" tall, 1 9/16" wide, 1/4" thick
- Depth From The Wall
- 2.5"
- Bolt Spacing
- 2" and 3.5"
- Max Door Thickness
- 1 3/4"

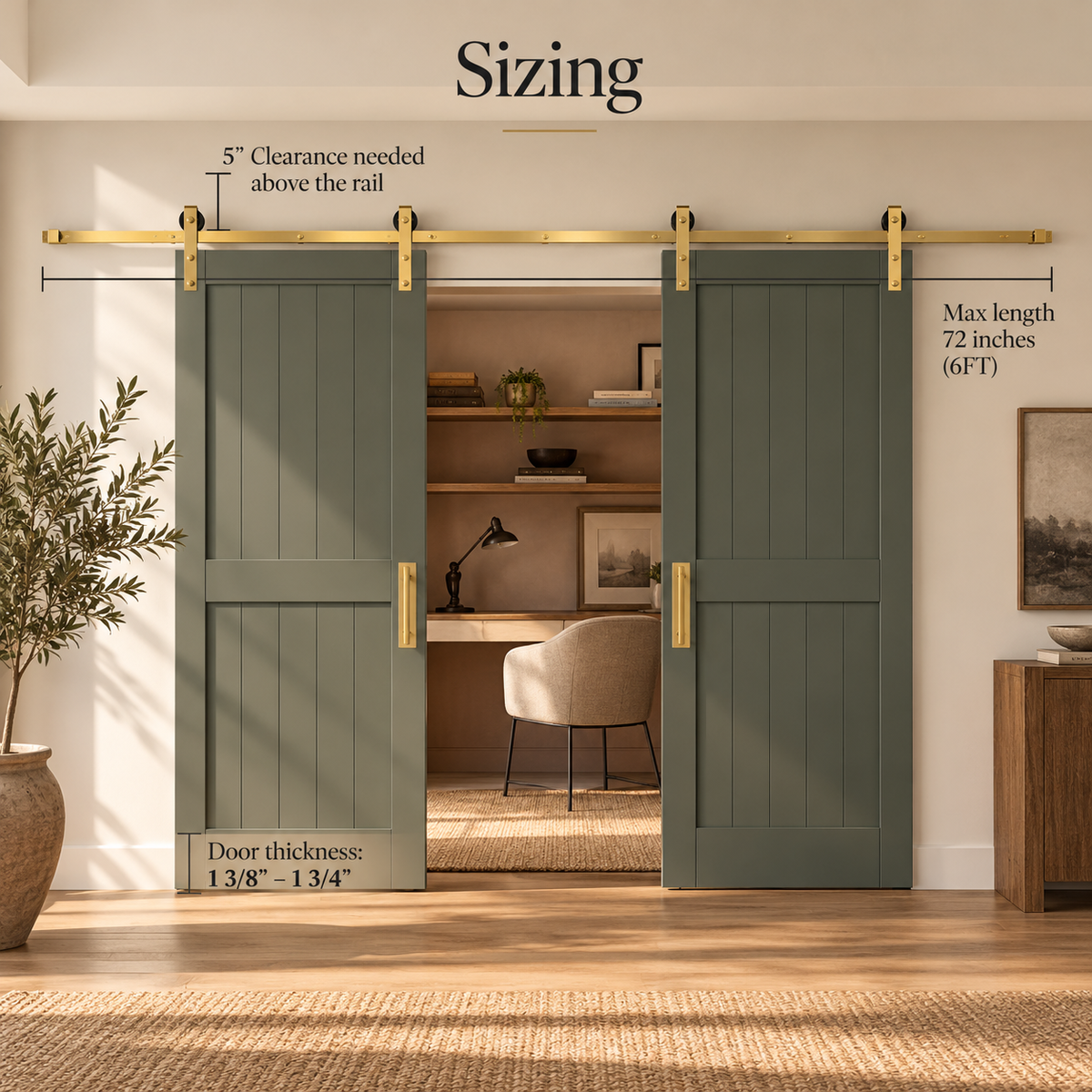

What Track Length Do I Need?
Choose 6ft (72"), 8ft 2in (98"), 12ft (144") or 13ft (156"). The Double hangs two doors that meet in the middle. Each door should overlap its side of the opening, and you need clear wall on both sides for each door to slide into.
Max opening width: [Molly to confirm]
See How To Measure.

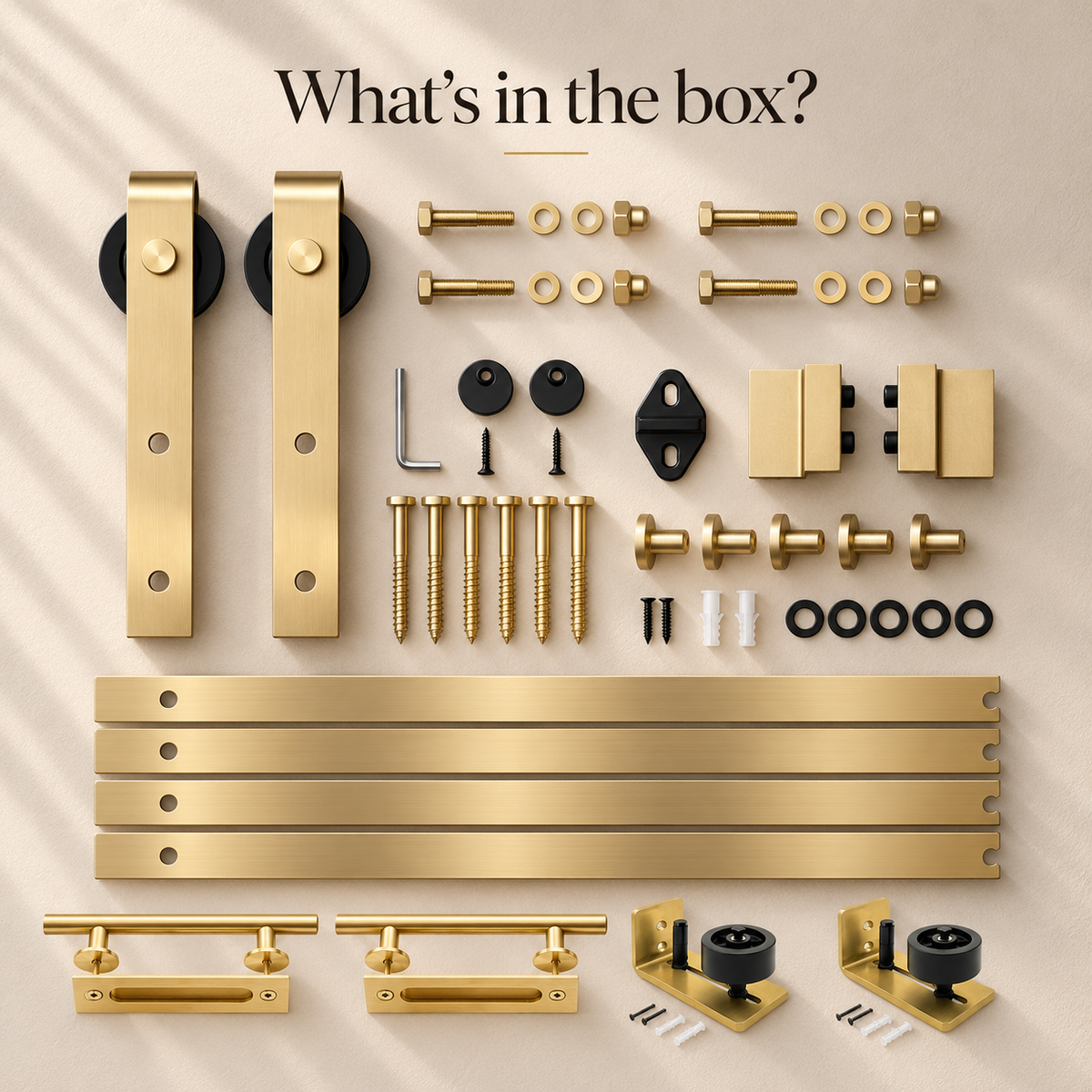

What's Included?
Solid metal track (6ft: 4 pieces; other sizes: [Molly to confirm], plus connector screws), 2 hangers with rollers, door stops and all mounting hardware, plus step-by-step instructions.
- 2 pull handles
- 2 floor guides with felt silencing strips for the rollers
Hardware only. The doors are not included.
How Much Clearance Do I Need?
- Above The Opening
- At least 5" between the ceiling and the top of the rail
Can I Install It Myself?
Yes, it is designed for DIY. Step-by-step instructions and all mounting hardware are included. For indoor use only. The floor guides mount to the wall, so there is no groove to cut in the doors and no drilling into the floor.
- Studs Or Drywall
- Screw the track into wall studs.
- Header Board
- Use a header board if the track holes don't line up with your studs or if your doorway has trim. Match the board to the trim thickness and screw it into the studs.
Step 1
Pick Your Rail Size
Choose a rail about twice your door's width, so the door can slide fully open and clear the doorway.
| Rail | Length | Max Door Width | Wall Space Needed |
|---|---|---|---|
| 5ft | 60" | — | — |
| 5ft 5in | 65" | — | — |
| 6ft | 72" | — | — |
| 6ft 7in | 78.75" (79") | 40" | — |
| 7ft | 84" | — | — |
| 8ft | 96" | — | — |
| 9ft | 108" | — | — |
| 6ft Double (Light Gold) | 72" | — | — |
| 8ft 2in Double (Light Gold, Dark Gold) | 98" | — | — |
| 12ft Double (Dark Gold) | 144" | — | — |
| 13ft Double (Dark Gold) | 156" | — | — |
Contact us for exact sizing.
You'll need clear wall beside the doorway for the door to slide into.
Step 2
Check Your Height
- Above The Opening
- At least 5" between the ceiling and the top of the rail
- Door Thickness
- 1 3/8" or 1 3/4"
Step 3
Check The Weight
- Max Door Weight
- Up to 220 lb
Solid metal hardware, never hollow, built to carry a full-size door.
Step 4
Single Or Double Door
Hanging two doors that meet in the middle? Shop The Double Door Kit in 6ft, 8ft 2in, 12ft or 13ft.
All kits are hardware only. The door is not included.
Barn Door Hardware Kit | Double Door | Gold
How To Measure
Single, Double Or Bypass
Single Door Or Double Door
"Single" sizes hang one door on one track. The Double Door Kit (6ft, 8ft 2in, 12ft or 13ft) hangs two doors on one track that meet in the middle.Bypass
Two doors on two parallel tracks that slide past each other, for wide closets. Sold separately.Questions About This Kit
Choose 6ft (72"), 8ft 2in (98"), 12ft (144") or 13ft (156"). The Double hangs two doors that meet in the middle. Make sure there is open wall on both sides for each door to slide fully clear. Max opening width: [Molly to confirm]
1 3/8" to 1 3/4".
At least 5" between the ceiling and the top of the rail. If the doorway has trim, mount the track on a header board as thick as the trim.
Up to 220 lb.
The track (6ft: 4 pieces; other sizes: [Molly to confirm]) with connector screws, 2 hangers with rollers, door stops, all mounting hardware, 2 pull handles, 2 floor guides with felt silencing strips and step-by-step instructions. The doors are not included.
Yes. Step-by-step instructions and all mounting hardware are included. The track pieces join seamlessly with the included connector screws. Screw the track into wall studs, or into a header board screwed into the studs. The floor guides mount to the wall, so there is no groove in the doors and no drilling into the floor.
Solid, heavyweight metal, never hollow, with a brushed gold finish. For indoor use only.

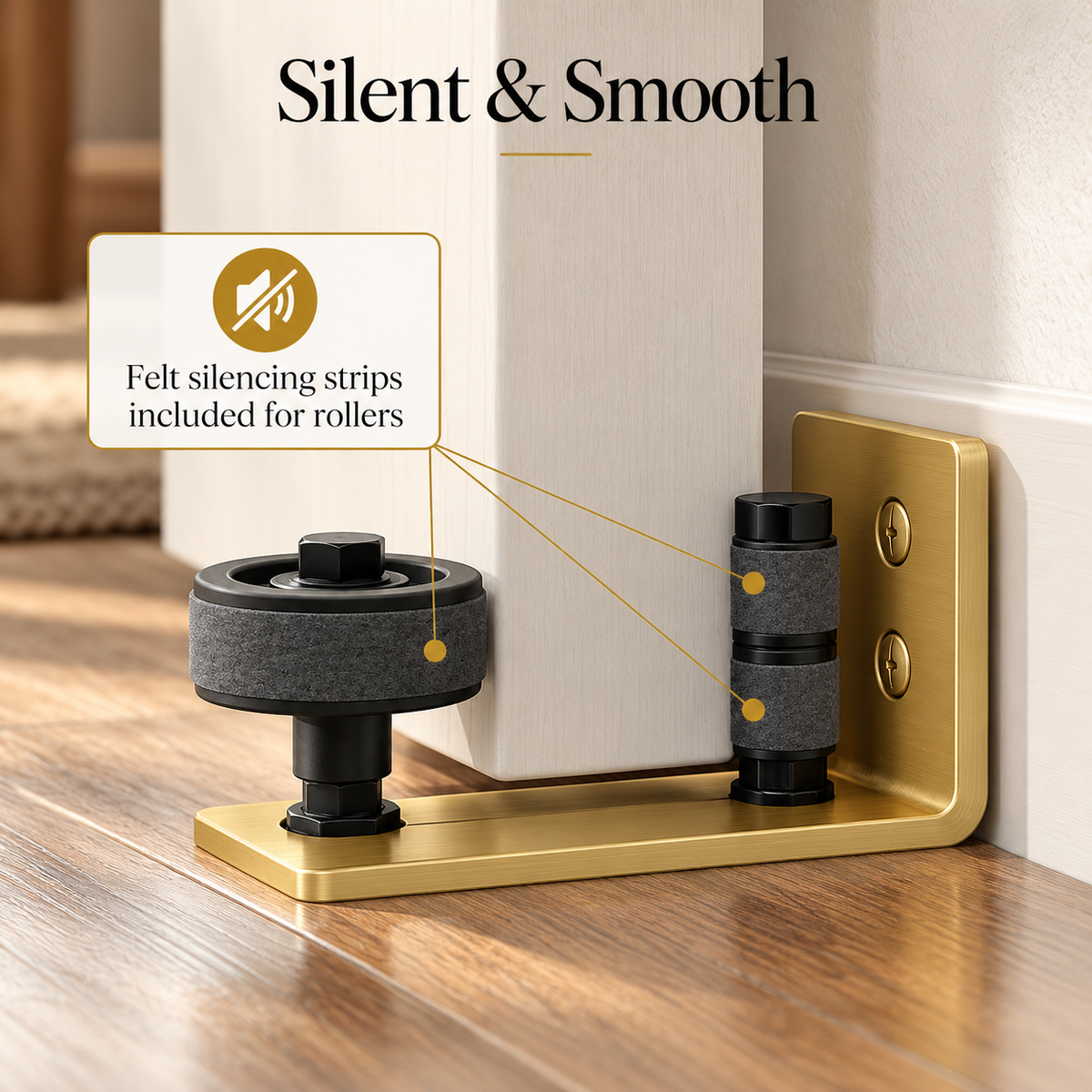

Yes. Felt silencing strips on the floor guide rollers keep each close soft and quiet.
